The First High Output Outboard Alternator. Built for How You Actually Boat.
For the first time, outboard boaters can run stabilizers, air conditioning, inverters, refrigeration, and large lithium house banks without depending on a generator. The ARCO Zeus A225-12V delivers 225 amps and 3,500 watts of charging capability directly from your outboard.
See What 225 Amps Actually Means.
Drag the slider to any engine RPM. See exactly how many amps the Zeus A225 is producing at that speed, how it compares to a Mercury 85 and 115, and what you can run with that output.
Select the number of engines on your boat, then check the loads you run to see your power balance.
How to use this tool
A highlighted row means your current RPM output is capable of supporting that system. Check the boxes for the systems you actually run on your boat to calculate your real power balance below.
Application amperages are based on common brands and usage. Please verify your specific application's amperage draw. Not all applications shown can be run at the same time.
Standard Alternators Were Not Built for Today's Boats.
OEM outboard alternators were designed for an era when boats ran basic electronics and simple starting systems. Today's boats are different. Refrigerators, premium audio, inverters, air conditioning, stabilizers, watermakers, and large lithium house battery banks have transformed onboard electrical demand entirely.
A standard 85-amp or 115-amp alternator can struggle to keep pace with that kind of load, especially at low RPM or when spending extended time away from shore power.
Many boaters turn to gas-powered generators to fill the gap, but generators take up valuable space, add weight, create noise, and require additional fuel and maintenance. The ARCO Zeus A225 offers a different path: significantly more usable charging power delivered directly from the outboard, without a dedicated generator.
Stabilizers
High-draw stabilization systems run continuously while underway or at anchor, demanding sustained output a stock alternator struggles to deliver.
Air Conditioning
One of the highest continuous electrical loads on a modern cruising vessel, and one previously out of reach for most outboard setups.
Refrigeration
Continuous draw that compounds quickly in warm climates and offshore conditions.
Inverters
Converting 12V to 120V for onboard appliances, charging stations, and electronics requires a strong and sustained charging source.
Trolling Motors
High-current draw trolling motors benefit directly from a high-output alternator capable of keeping battery banks charged during extended use.
Lithium House Banks
Lithium batteries can accept far higher charge current than traditional lead-acid or AGM systems, making a high-output alternator essential to unlocking their full potential.
Premium Audio Systems
High-wattage marine audio setups demand sustained electrical output throughout the day.
Water and Ice Makers
Power-intensive watermakers and ice makers are increasingly common on offshore and cruising boats.
Electronics and Navigation
Chartplotters, radar, VHF, AIS, and autopilot systems all add to the cumulative load.
Designed primarily for engine starting and basic onboard loads. Not optimized for modern high-demand systems or large lithium battery banks.
- Limited output for high-draw systems
- Slower recharge for large battery banks
- May require extended engine runtime to recover charge
- Can struggle under combined modern electrical loads
2 to 3x faster charge times vs OEM units. Engineered to support large lithium house banks, high-draw systems, and modern boating demands.
- 225 amps: 2 to 3x faster charge times vs OEM
- Designed for faster lithium battery recharge
- Supports stabilizers, AC, inverters, trolling motors, and more
- Helps reduce or eliminate generator reliance
Built to Power the Modern Outboard Boat.

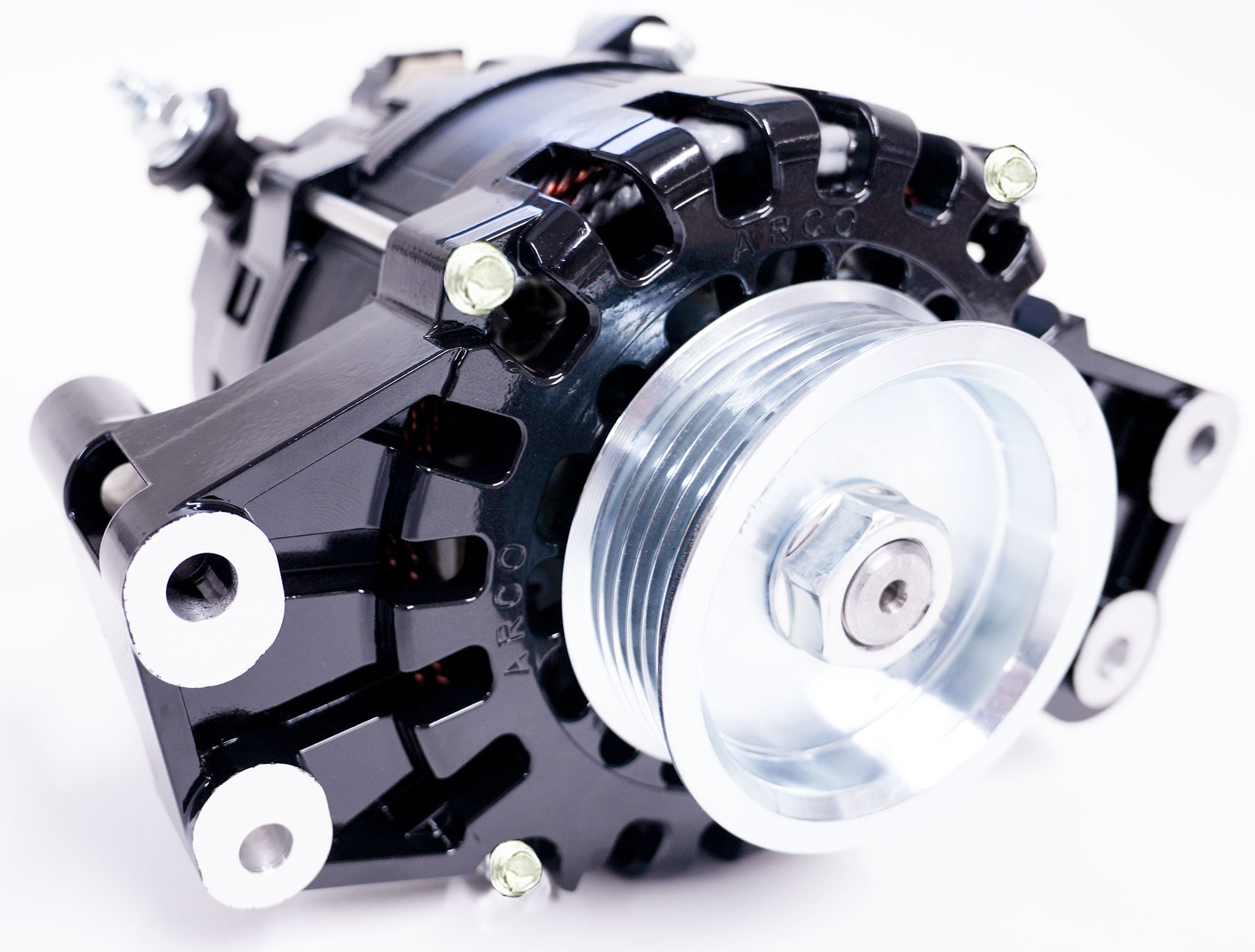

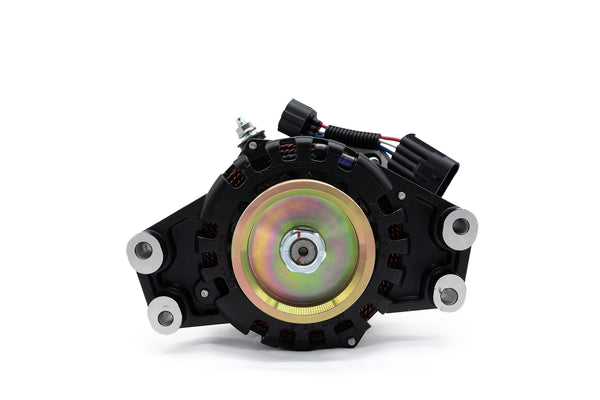

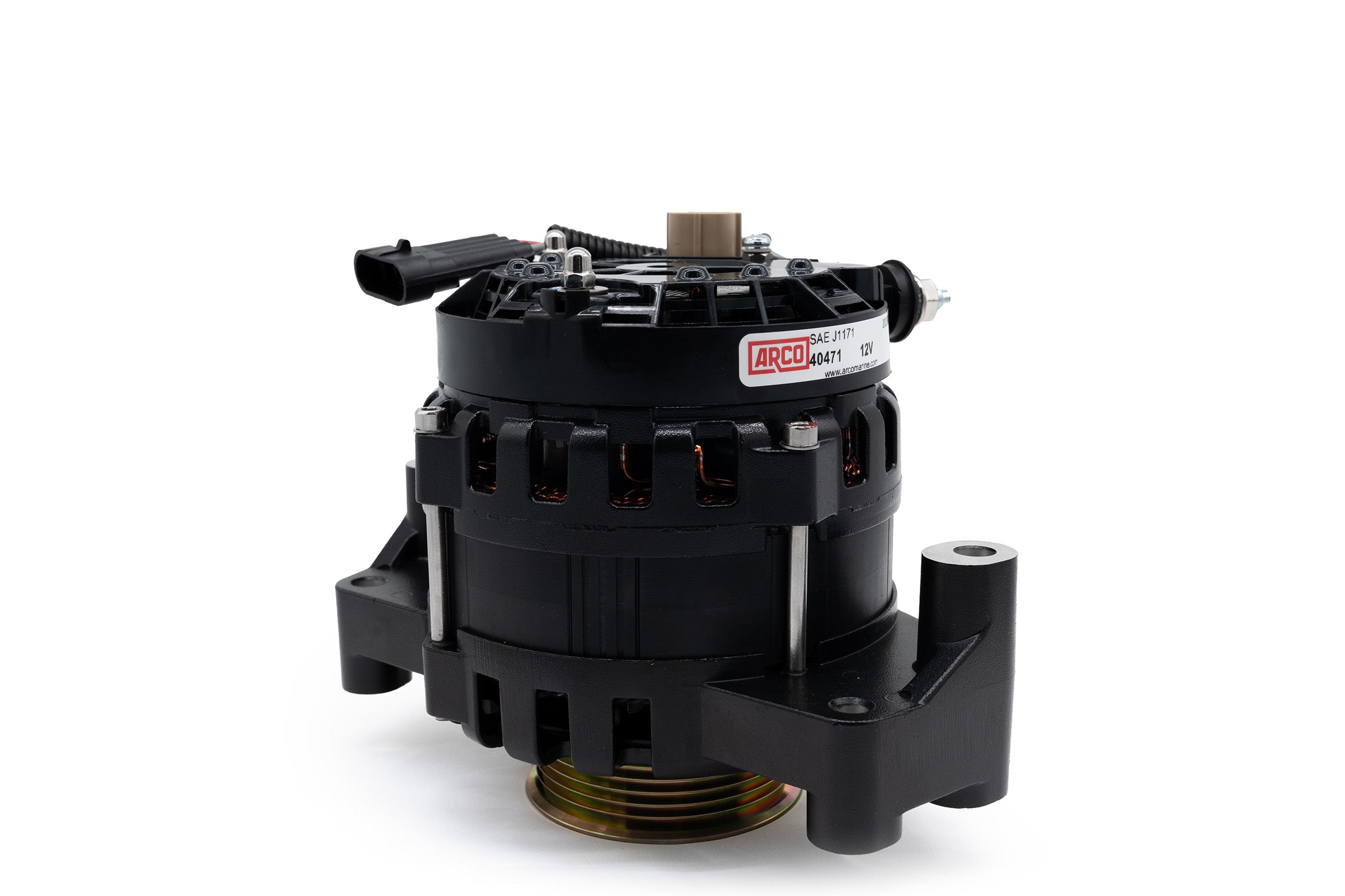

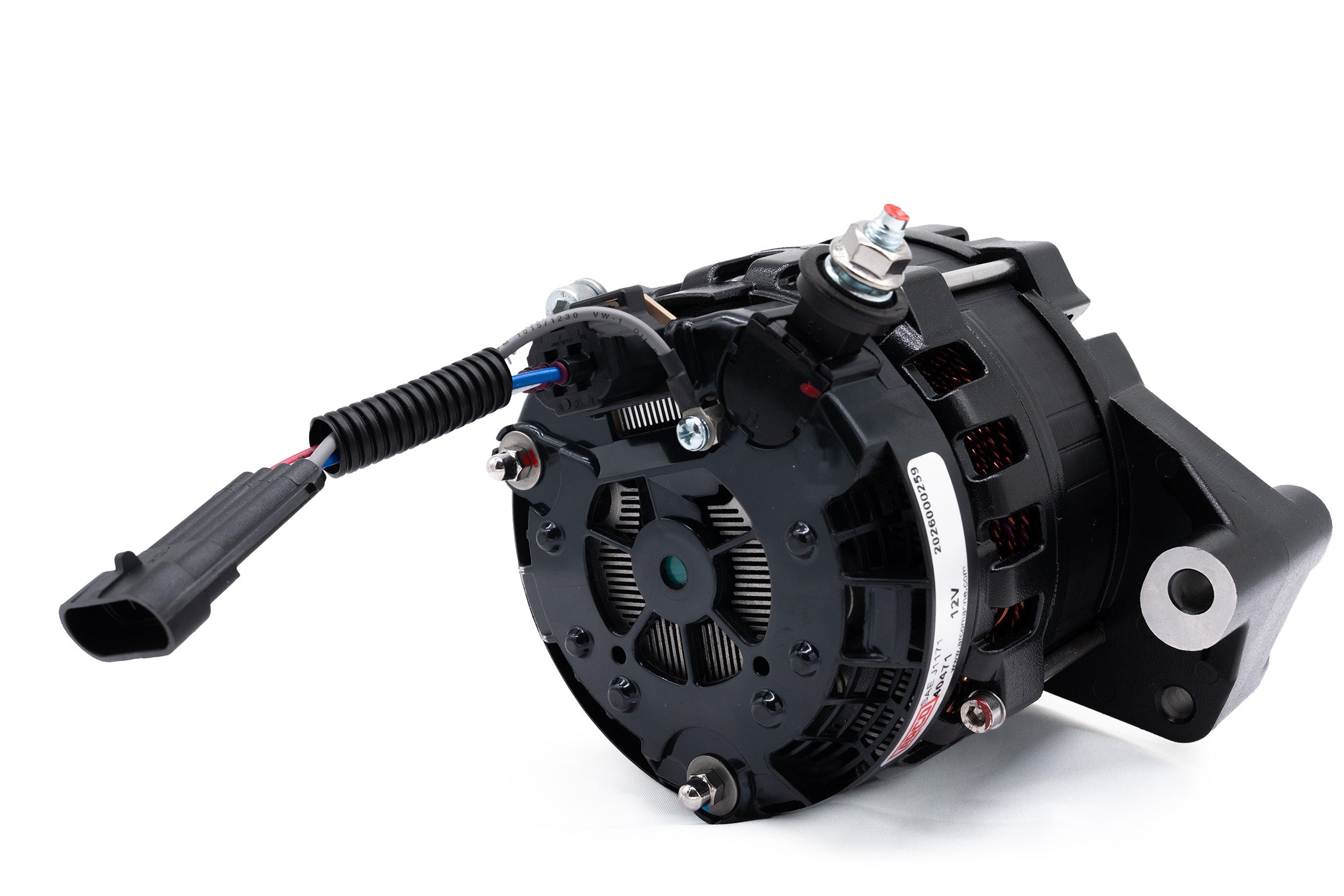

The ARCO Zeus A225-12V is a 225-amp, 3,500-watt high output outboard alternator delivering 2 to 3x faster charge times compared to OEM units. It is part of the ARCO Zeus High Energy product family, engineered for boaters who need a complete onboard power upgrade, not just a component swap.
225 amps and 3,500 watts of charging capability with 2 to 3x faster charge times vs OEM units
Engineered to help recharge large lithium banks at significantly faster rates than typical OEM alternators
Built to support stabilizers, inverters, air conditioning, refrigeration, trolling motors, water and ice makers, and premium audio
Batteries continue charging even at low engine speeds, including idle, so power is available when and where you need it
Enables efficient charging without dedicated engine or generator runtime
Lithium BMS shutdowns and sudden battery disconnects can instantly destroy high-output alternator diodes. The Zeus Alternator Shield is engineered to protect your investment by clamping voltage spikes and safely diverting them to ground.
This Is Not Just an Alternator Replacement.
The most common question about this upgrade is a fair one: why spend more money and potentially re-cable the boat? The answer is capability. The A225 is an investment in what your boat can do, not simply what it runs on.
Standard OEM alternators were engineered to support starting systems and modest onboard loads. As boat electrical systems have grown more sophisticated, the gap between what a stock alternator can deliver and what modern boaters actually need has widened considerably. At 2 to 3x the charge rate of a stock Verado alternator, the ARCO Zeus A225-12V is designed to close that gap, helping boaters support higher electrical demand, recharge faster, and spend less time relying on engine runtime or generators to maintain their battery banks.
Power Stabilizers Directly from the Engine
Stabilizers are among the highest continuous electrical loads on an outboard boat. The A225 is built to sustain that demand directly from the outboard in many configurations, without a dedicated generator.
Run Air Conditioning at Anchor
Marine AC was once impractical on outboard boats without a running generator. The A225 delivers the sustained output needed to support onboard air conditioning in many configurations.
2 to 3x Faster Charge Times
Lithium batteries can accept very high charge current. The A225 is designed to deliver 2 to 3x faster charge times compared to typical OEM units, getting you back to full capacity sooner.
Keep Trolling Motor Banks Topped Off
High-current trolling motors deplete battery banks fast. The A225 keeps house banks charged during extended low-speed use, so you spend less time managing power and more time on the fish.
High Output Even at Idle
The A225 starts charging at 700 RPM idle speed and delivers 95 amps at idle. Batteries stay healthy at the dock, at anchor, and while trolling.
Protect Your Alternator Investment
A high-output alternator is only as reliable as its protection. Lithium BMS shutdowns can trigger load dump events that instantly destroy diodes. The Zeus Alternator Shield is designed to pair directly with the A225 to guard against these events, extending alternator life and preventing costly failures.
Who Benefits Most from This Upgrade
The A225 is designed for any outboard boater whose electrical demands have outgrown what a standard OEM alternator was built to deliver.
Generator-Reduction Setups
In many cases, simply upgrading the stock alternator and cabling to a 225 amp unit can help reduce or replace the role of a portable gas generator, enabling quieter and cleaner operation at anchor.
Boats with Large Lithium House Banks
Lithium systems are designed to accept high charge current. Pairing them with a high-output alternator helps you get the most from your battery investment and recover charge far faster. Pair with the Zeus Alternator Shield to protect against BMS-triggered disconnect events.
Day Boats with Heavy Electrical Loads
Multiple people, multiple devices, music, electronics, and refrigeration all running simultaneously create real demand that can exceed what OEM alternators comfortably support.
Weekend and Overnight Boats
Longer time on the water means longer time away from shore power. A higher-output alternator helps maintain battery state across multi-day outings without extended engine runtime.
Boats Running Air Conditioning
Marine air conditioning is one of the most power-intensive systems on the water. The A225 is built to help support those continuous high electrical demands directly from the engine.
Boats with Gyros and Stabilizers
Gyroscopic stabilization systems draw continuous power throughout the day. A high-output alternator is designed to help sustain that demand without compromising the rest of your electrical system.
Fishing Boats with Trolling Motors
Extended low-speed trolling depletes batteries fast. The A225 keeps banks charged throughout the day so you can stay on the fish without watching your battery gauge.
Premium Audio Installations
High-wattage marine audio systems require consistent, sustained power. The A225 is engineered to help support those demands without draining your house bank during use.
Boats Running Inverters
Using 120V appliances, charging stations, or electronics aboard requires healthy battery banks and a strong charging source to keep up with draw and maintain system voltage.
Why a Twin Alternator System
Outperforms a Generator.
If your boat runs twin outboards, a pair of ARCO Zeus A225 alternators can deliver over 6 kW of combined charging capacity. That changes the conversation around generators entirely.
High Peak Charging Capacity
A twin 225A system can deliver more than 6 kW of charging capacity, especially useful for rapidly charging large lithium banks and reducing overall engine run time.
Better Redundancy
If one engine goes down, the remaining engine continues providing charging. A generator creates a single point of failure with no backup.
Significant Weight Savings
Eliminating a genset can save roughly 150 kg of displacement. Each A225 alternator adds only about 2 lb, making the weight trade-off substantial on any outboard-powered vessel.
Lower Noise Underway
Because the outboard engines are already running, the alternator system does not introduce another major noise source. A generator running at anchor is one of the most disruptive sounds on the water.
Valuable Space Savings
Space is at a premium on outboard-powered boats. Removing a generator frees up significant storage or equipment space that can be repurposed for the systems that matter most to you.
Lower Maintenance Burden
A generator requires its own maintenance schedule, fuel supply, oil changes, and service intervals. Eliminating it removes an entire system from your annual maintenance checklist.
Usable Power Across Every RPM Range.
Most alternators are rated at peak output under ideal conditions. Real-world boating is different. The A225 is engineered to deliver usable and sustained charging output at the engine speeds you actually spend time at, not just wide-open throttle. Charging begins at a cut-in RPM of just 1,288 and remains stable across the full operating range.
This matters most for boaters running lithium house banks and continuous onboard loads. A high output rating means little if the alternator can only deliver it at high RPM. The A225 produces meaningful, stable output from the moment the engine starts.
Idling at the Dock or Anchor
With a cut-in RPM of 1,288, the A225 starts charging essentially at idle. Batteries are actively charging the moment the engine starts, without needing to rev up or run at cruise.
Trolling and Slow-Speed Fishing
At 1,000 engine RPM, output reaches 125 amps sustained. Extended trolling with motors, live wells, refrigeration, and electronics no longer means watching your battery bank drain.
Harbor and Inlet Maneuvering
Reduced throttle maneuvering still delivers strong, stable output. Your system stays healthy and your batteries stay topped off even at the slow speeds required in crowded marinas and inlets.
Moderate Cruising Speeds
At 4,000 engine RPM, the A225 delivers 187 amps sustained, well above what a stock alternator produces at any speed and more than enough to support high-draw onboard systems underway.
Protect the Power You Just Upgraded To.
A high-output alternator running alongside a lithium battery system faces a specific risk that standard alternators rarely encounter: load dump events. When a lithium BMS shuts down suddenly, or a battery switch is interrupted, the resulting voltage spike can instantly destroy alternator diodes. The more capable the alternator, the higher the stakes.
The ARCO Zeus Alternator Shield is engineered specifically for this. It clamps excess voltage and safely diverts it to ground, protecting the alternator's internal components from the disconnect events that modern lithium systems introduce. It installs directly at the alternator terminals in minutes and includes an LED indicator for real-time health status.
Clamps Voltage Spikes at the Source
Excess voltage from battery disconnect events is clamped and diverted to ground before it reaches alternator diodes. Tested to ISO 16750-2 Load Dump Standard.
Up to 75% More Survivable Disconnect Events
Engineered to handle significantly more real-world disconnect events compared to leading competitors, so your alternator stays protected through years of operation.
Works with Both Communicating and Non-Communicating Batteries
Compatible with ARCO Zeus Bluetooth controller voltage sensing, protecting a wide range of lithium and standard battery configurations.
Installs in Minutes at the Alternator Terminal
No complex wiring. Direct terminal installation with an LED health indicator for ongoing monitoring. IP68 waterproof rated.
Why This Risk Is Real
Lithium batteries are ideal partners for high-output alternators because they accept charge current fast. But their BMS protection systems can shut down instantly under fault conditions, dropping the alternator's load without warning. That voltage spike has nowhere to go. Without protection, the diodes absorb it. Diode failure typically means complete alternator replacement.
Part of the Zeus High Energy Collection
The A225 and the Alternator Shield are designed to work together as a complete high-output charging solution, built around the same system requirements and tested under the same real-world conditions.
Zeus A225-12V
Specifications

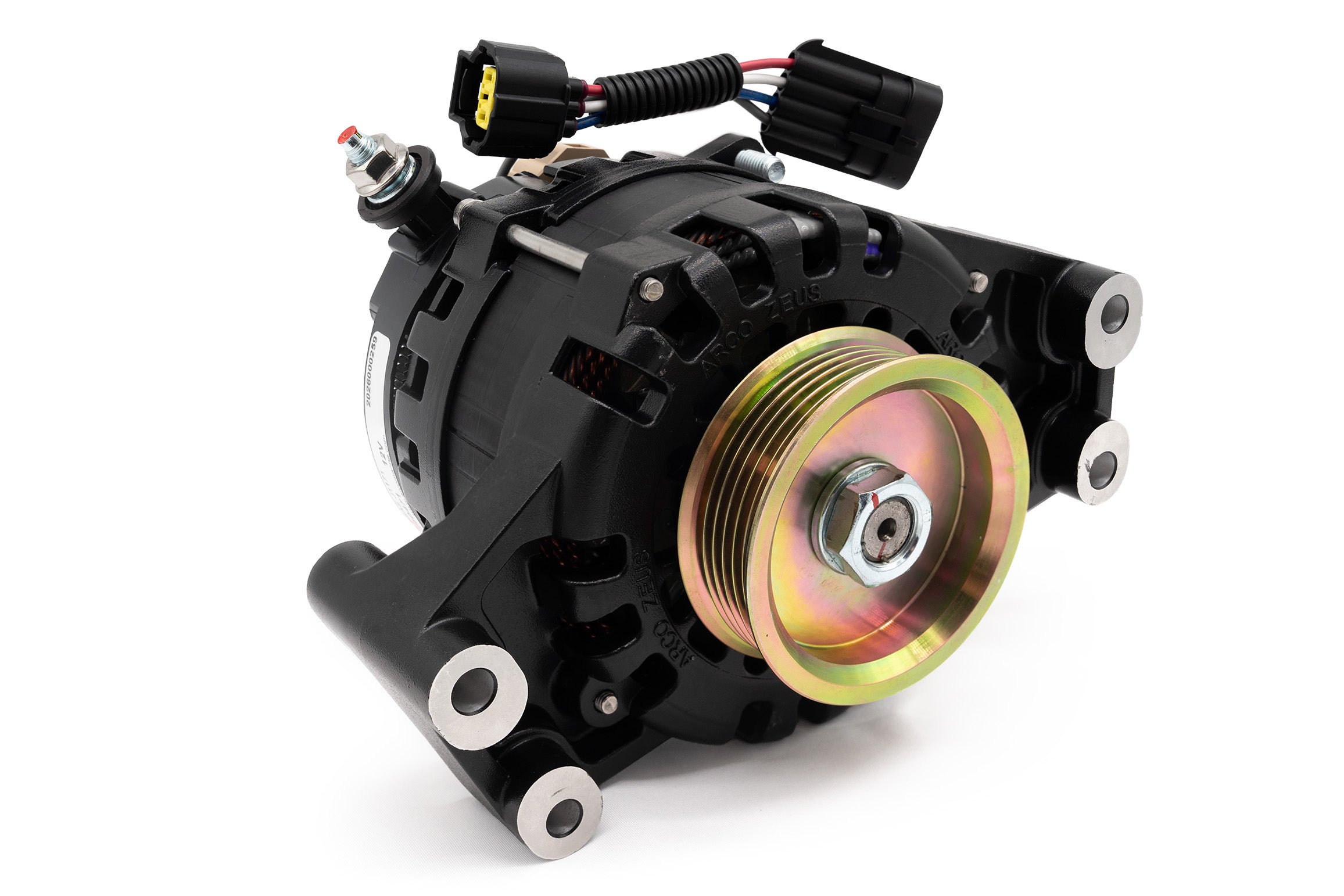

| ARCO Part Number | 40471 / 40481 |
| Voltage | 12V |
| Max Output (Cold) | 254 amps |
| Sustained Cruising Output | 187 amps (hot, 4,000 engine RPM) |
| Sustained Idle Output | 95 amps (hot, 700 engine RPM) |
| Cut-In Alt RPM | 1,288 |
| Maximum Alt RPM | 19,000 |
| Field Type | P |
| Rotor Poles | 16 |
| Regulation | Internal/External (IE) |
| Battery Sense Harness | Included |
| Alternator Fuse Link | Included |

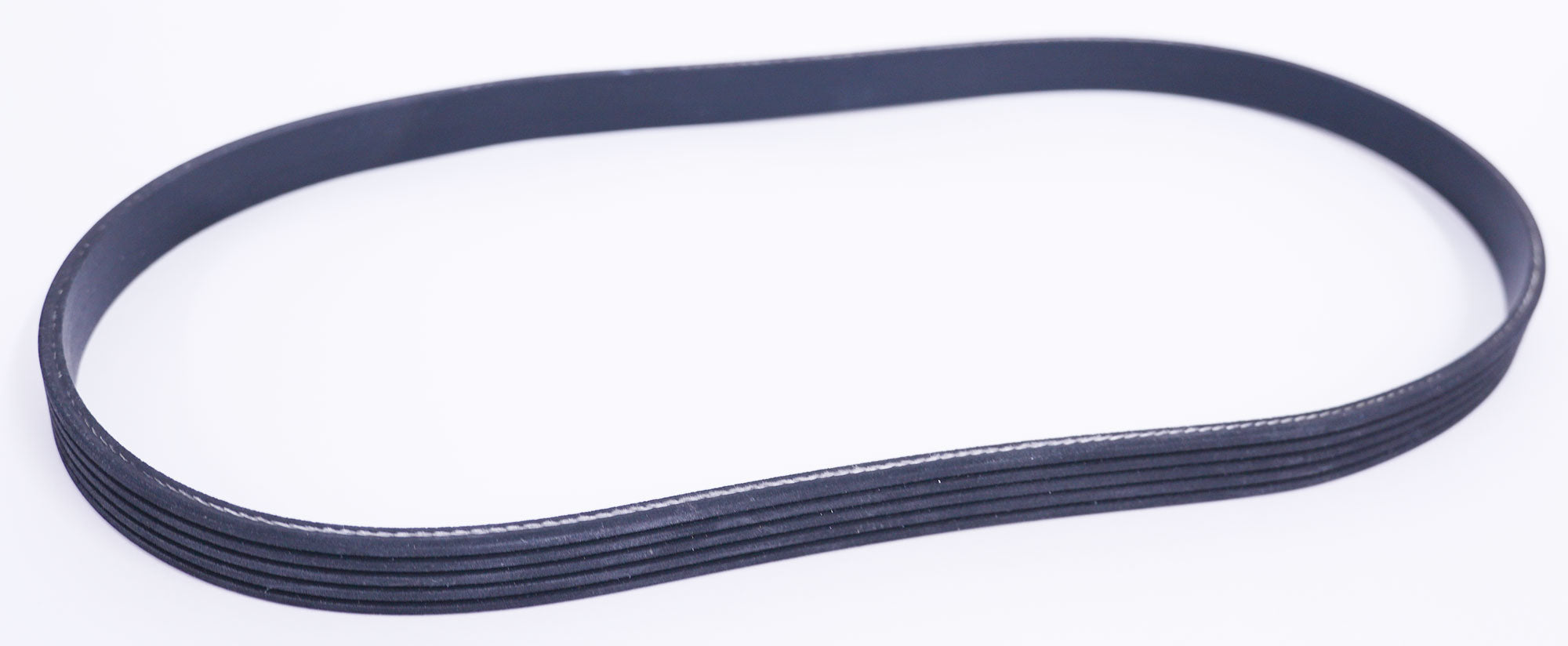

| Alternator Belt | Included |
| Standard Pulley | K6 75mm |
| Shaft Diameter | .66 in (17 mm) |
| Side Mount Battery Post | M8 Thread |
| Avalanche Diodes | 50 amps |
| Max Continuous Operating Temp | 110 degrees C |
| Weight | 14.9 lb (6.7 kg) |
| Mount | Verado Mount, Case Ground |
The A225 vs. the A225s
The ARCO Zeus A225-12V shares the same core high-output alternator platform as the A225s, with one key difference: this version is fitted with a 75mm K6 pulley and Verado mount to match specific outboard engine configurations.
Both products are part of the ARCO Zeus High Energy product family, engineered to deliver the same 225-amp output capability. The appropriate choice depends on your engine's pulley and mount requirements. For fitment and compatibility guidance, contact ARCO Marine directly.
Mercury Alternator Applications
The following table shows stock Mercury alternator configurations by engine. Use this as a reference to understand the OEM alternator your engine currently runs and confirm fitment with ARCO Marine before ordering.
| HP | Engine Size | Model | Stock Alternator | Amps | Option Alternator | Amps |
|---|---|---|---|---|---|---|
| 500R | V8 / 4.6L | Racing | 8M0205478 | 115 | - | - |
| 450R | V8 / 4.6L | Racing | 8M0142249 | 115 | - | - |
| 360 | V8 / 4.6L | APX | 8M0142248 | 85 | - | - |
| 300R | V8 / 4.6L | Racing | 8M0142248 | 85 | 8M0176702 | 115 |
| 300R | V8 / 4.6L | AMS Racing | 8M0142249 | 115 | - | - |
| 300 | V8 / 4.6L | Pro XS | 8M0142248 | 85 | 8M0176702 | 115 |
| 300 | V8 / 4.6L | SeaPro / Verado | 8M0142248 / 8M0142249 | 85 / 115 | 8M0176702 | 115 |
| 250R | V8 / 4.6L | Racing | 8M0142248 | 85 | 8M0176702 | 115 |
| 250 | V8 / 4.6L | Pro XS / SeaPro / Verado | 8M0142248 / 8M0142249 | 85 / 115 | 8M0176702 | 115 |
| 225 | V8 / 4.6L or V6 / 3.4L | Pro XS / SeaPro | 8M0142248 | 85 | 8M0176702 | 115 |
| 200 | V6 / 3.4L or V8 / 4.6L | APX / Pro XS / SeaPro | 8M0142248 / 8M0205479 | 85 | 8M0176702 | 115 |
| 175 | V6 / 3.4L | Pro XS | 8M0142248 | 85 | 8M0176702 | 115 |
| 150R | V6 / 3.4L | Racing | 8M0205479 | 85 | 8M0176702 | 115 |
This table shows stock Mercury Verado alternator part numbers for reference. Contact ARCO Marine to confirm compatibility and fitment for your specific engine before ordering.
The ARCO Zeus A225-12V: The First High Output Outboard Alternator
The ARCO Zeus A225-12V High Output Outboard Alternator is the market's first high-output alternator purpose-built for outboard boats. With a 225-amp, 3,500-watt output rating and 12V compatibility, it delivers 2 to 3x faster charge times compared to OEM units, enabling outboard boaters to run stabilizers, air conditioning, inverters, trolling motors, refrigeration, premium audio, water and ice makers, and large lithium house battery banks without depending on a gas-powered generator.
As part of the ARCO Zeus High Energy Collection, the A225 is designed with one central goal: helping boaters build a more capable onboard power system. That means faster lithium battery charging, reduced reliance on generators, and more freedom to run modern equipment away from shore power. Starting at 700 RPM idle speed and sustaining 95 amps at idle, it keeps charging across the full range of real-world outboard operating conditions, not just at wide-open throttle.

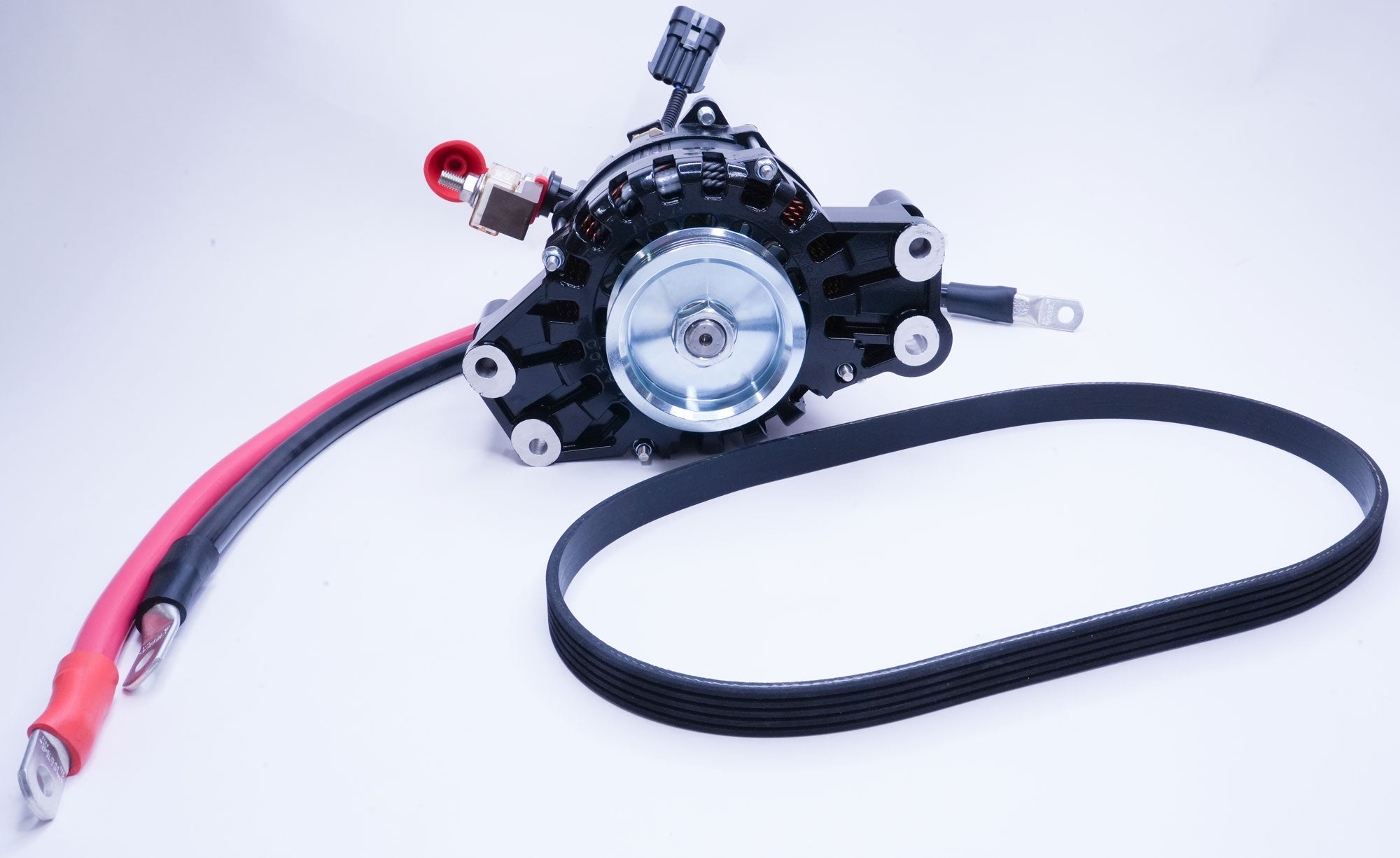

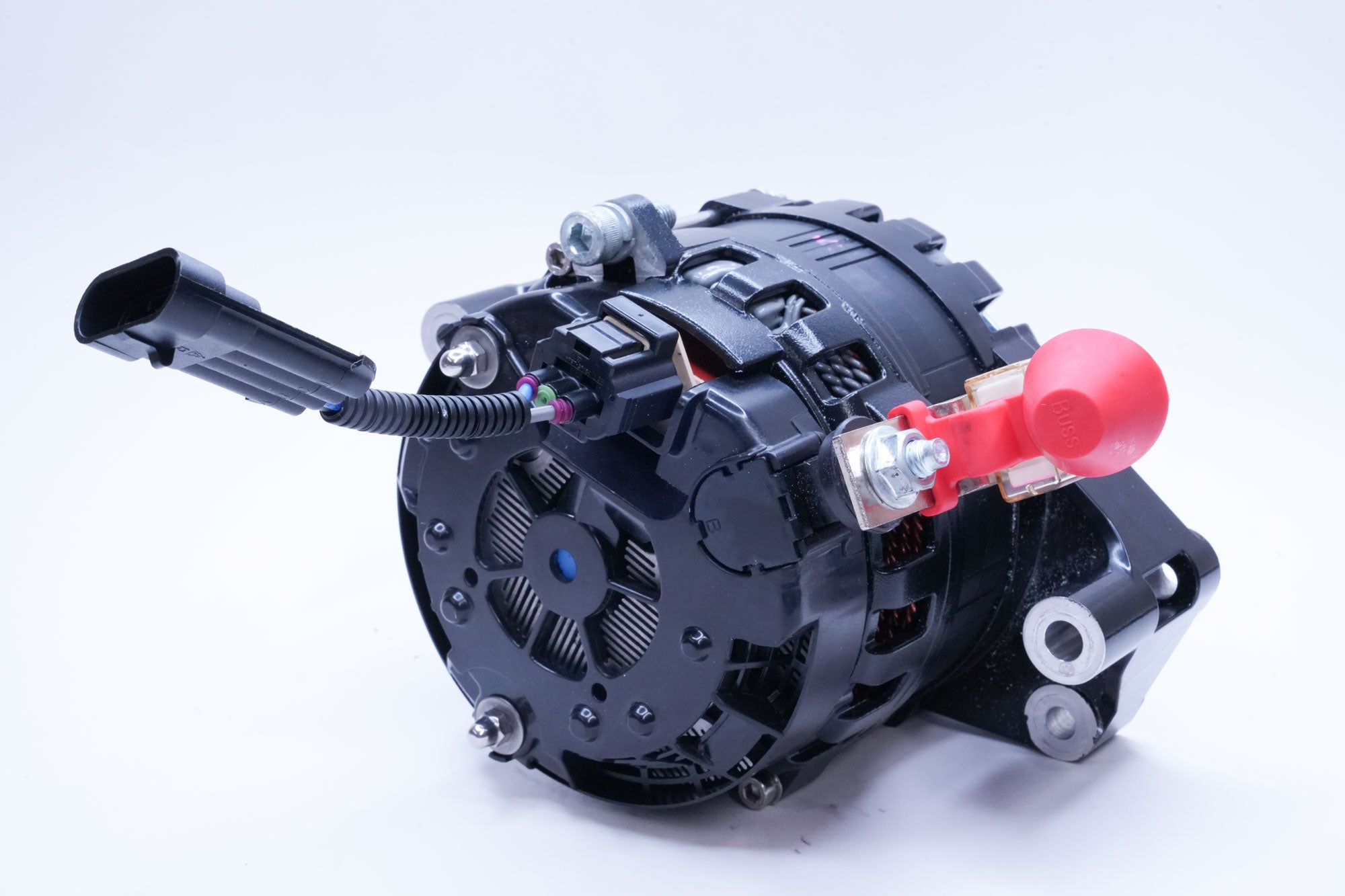

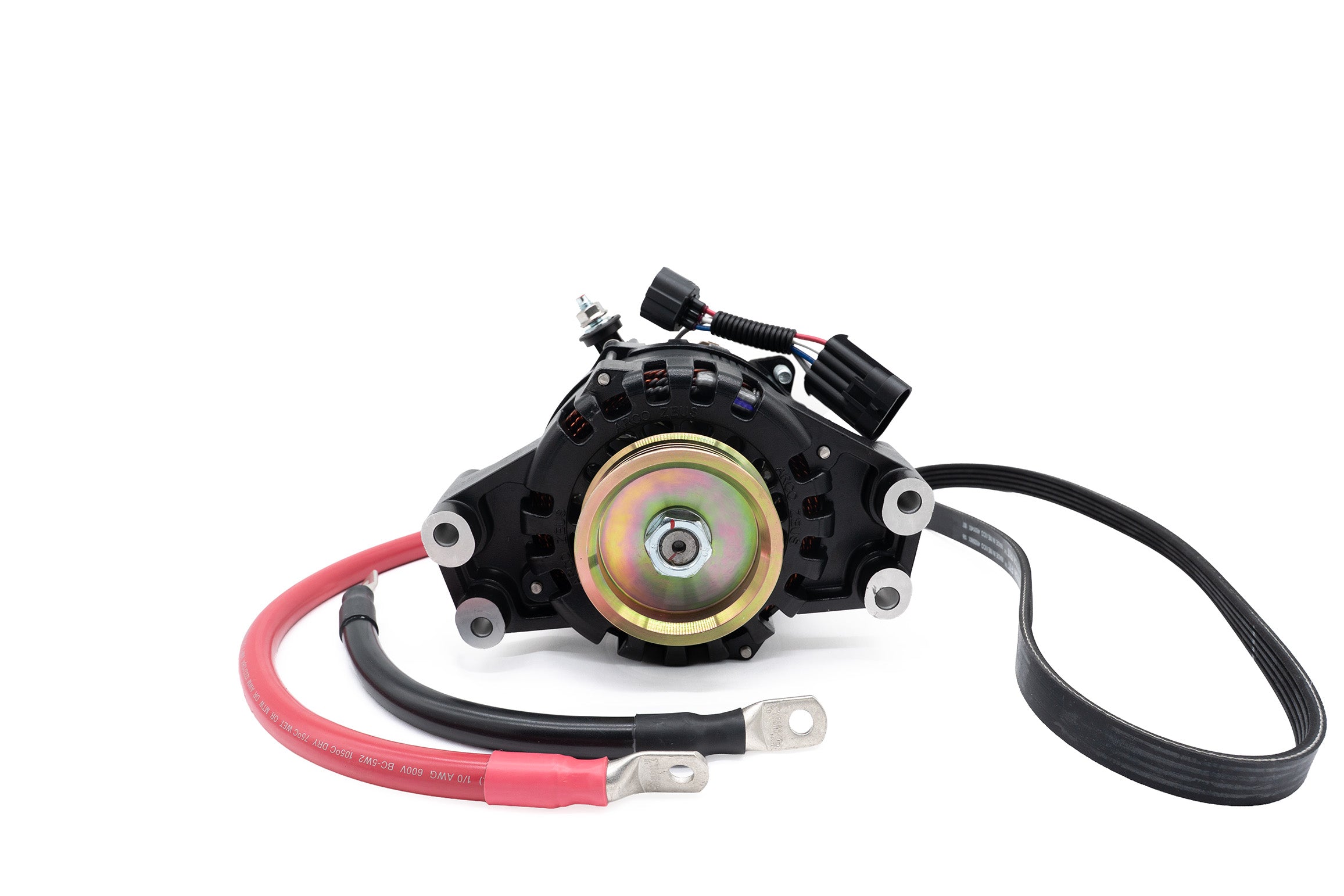

The kit includes a fusible link wire, battery sense harness, and alternator belt. The A225 uses a Verado mount with a 75mm K6 pulley, distinguishing it from the A225s version within the Zeus product family. ARCO Marine recommends confirming fitment before installation.
ARCO Marine has manufactured marine electrical components since 1960, building a reputation for reliability in demanding on-water environments. The ARCO Zeus product line represents the company's advancement into high-output marine charging technology, engineered for boaters who demand more than a factory replacement can offer.
An outboard alternator upgrade of this type is not simply a component swap. For many installations, it is the foundation of a generator-free or generator-reduced boating setup. By delivering substantially more usable power directly from the outboard engine, the A225 can reduce fuel consumption tied to charging routines, reduce generator maintenance, and enable a quieter, more capable experience at anchor or away from the dock.
For boaters running lithium battery banks, ARCO recommends pairing the A225 with the Zeus Alternator Shield. Lithium BMS shutdowns create load dump events that can instantly destroy high-output alternator diodes. The Shield clamps excess voltage and safely diverts it to ground, protecting the A225 and extending its service life. Both products are part of the Zeus High Energy Collection and are designed to work together.
Frequently
Asked
Have a question not covered here? Contact the ARCO Marine team directly for product support, fitment guidance, and compatibility questions.
Questions About the A225?
The ARCO Marine team is available to help with compatibility questions, installation guidance, fitment verification, and product support. Reach out directly or explore our support resources to get started.
Running a lithium system? Ask about pairing the A225 with the Zeus Alternator Shield for complete high-output charging protection.
IMPORTANT INSTALLATION AND WARRANTY NOTICE
The ARCO Zeus A225 High Output Alternator is an aftermarket product designed and manufactured by ARCO Marine. This product is not manufactured, endorsed, sponsored, approved, or affiliated with Mercury Marine or any other engine manufacturer.
Because the A225 is capable of producing significantly greater charging output than the original equipment alternator, installation may require modifications to the vessel's charging system. In particular, charging cables, battery connections, bus bars, overcurrent protection devices, and other system components should be evaluated and sized appropriately to safely handle increased charging currents.
The A225 is not intended to be considered a direct one-for-one replacement for the original equipment alternator without review of the vessel's electrical system. Improper installation or failure to upgrade associated electrical components may result in equipment damage, reduced performance, or unsafe operating conditions.
Installation of aftermarket components may affect engine or vessel warranty coverage. Customers should consult their engine manufacturer, dealer, or authorized service technician regarding any potential warranty implications prior to installation.
ARCO Marine recommends that installation be performed by a qualified marine technician familiar with high-output charging systems and applicable marine electrical standards.
